FISHING REMEDIAL TOOLS

EXTERNAL CATCH TOOLS

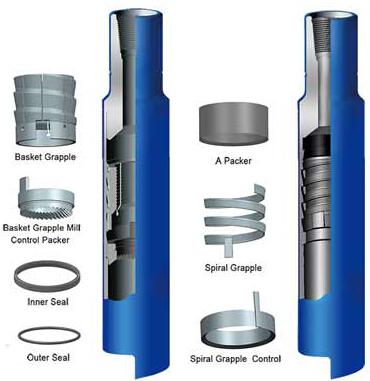

The Series 150 Releasing and Circulating Overshot is an external catch fishing tool designed to retrieve tubular items from the well bore. It is rugged, economical and easy', to use. Overshot come with a wide range of available accessories. These fishing tools have proven to be the most versatile and reliable in the field.

• Nitralloy Grapples
• Wall Hook Guides
• Oversized Guides
• Extension Sub.
• Overshot Milling Shoes
• Inner and Outer Seals
• Overshot Mill Extensions
• Lock Rings
• Spacer Rings

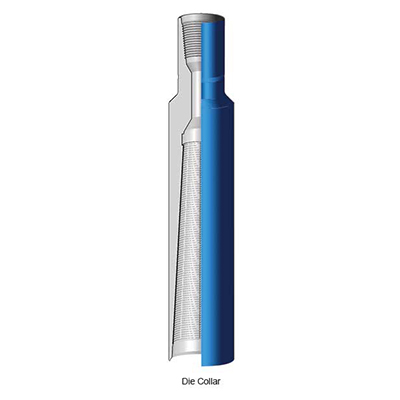

The Die collar is an external catch fishing tool designed to retrieve tubular members from the well bore.
INTERNAL CATCH TOOLS

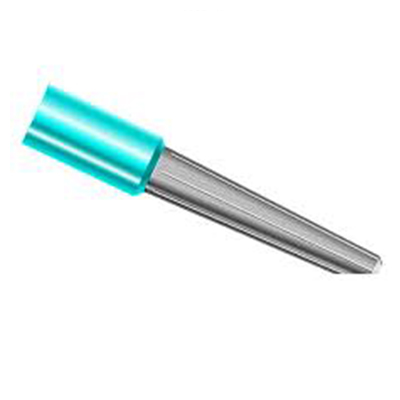

The Taper Tap is an internal catch fishing tool designed to retrieve tubular members from the well bore. It is the most economical of its kind for freeing fish.

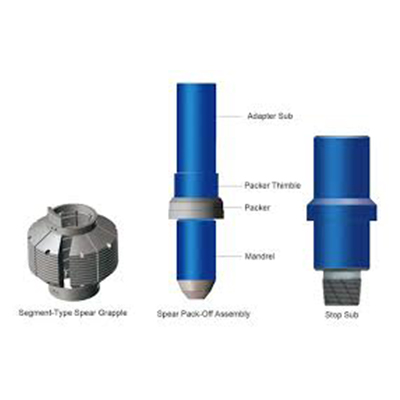

The Releasing Spear is an internal catch fishing tool designed to retrieve tubular members from the well boreJt is a rugged, dependable, and inexpensive device. The simple design assures positive engagement throughout the fishing operation is easy to release and re-engage if necessary and may be run in conjunction with other equipment such as pack off attachments and internal cutting tools.

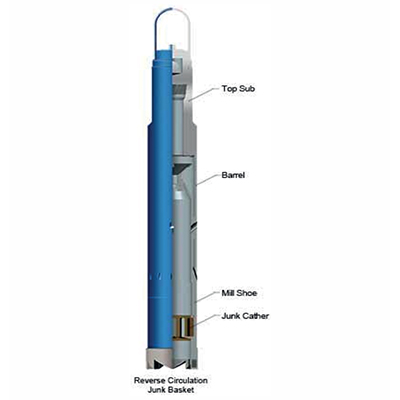

The Reverse circulating Junk basket (RCJB) is a junk retrieval tool designed to remove all types of objects from the bottom of the well bore. The superior tool removes such items and slips, hand tools, bit cones and any other small pieces of junk from the well. The RJB uses reverse circulation to aid junk recovery.

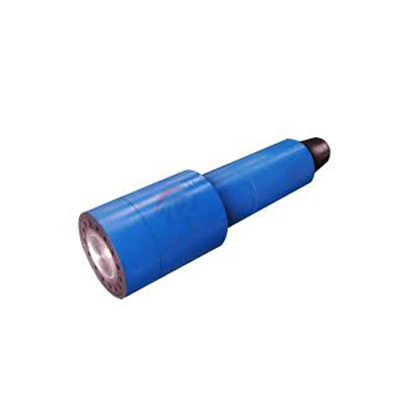

Fishing Magnet is junk retrieval tool designed to effectively remove metal particles, shavings, and debris from the bottom of the well bore.

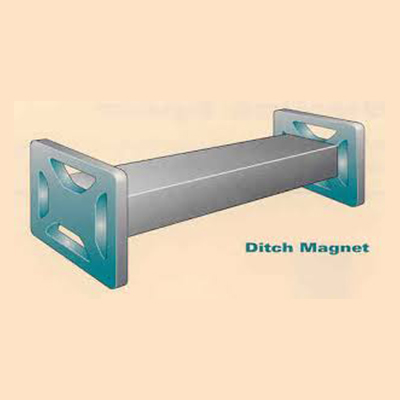

The Ditch Magnet is a junk retrieval tool designed to remove metal particles from drilling mud. High quality stainless steel is used to encapsulate a series of extra strength magnet elements assuring maximum pick-up capacity.

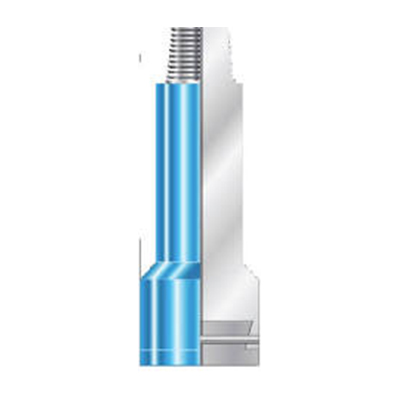

The Impression Block is an accessory tool used to accurately determine the dimensions and configuration of the upper end of a fish as well as to check its condition and position in the well bore.

The Wire line Spear is a simple easy to use tool designed to retrieve wire line and wire rope from the well bore.
ACCESSORY TOOLS.

The Hydraulic Fishing Jar is an easy to use accessory tool that assist in various operations such as fishing, testing, coring, rearning and washover. This is particularly helpful when the string is stuck or restricted and cannot be lifted only by pulling.

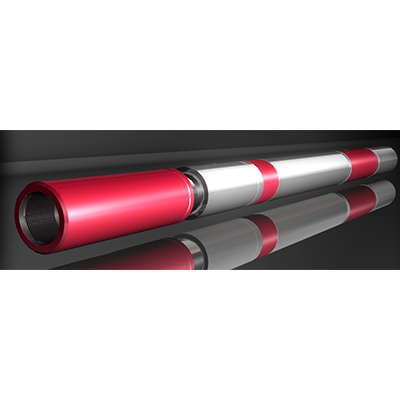

The Fishing Bumper Sub is a highly dependable accessory tool suitable for all fishing operations. Typical operations include releasing stuck drill pipe, dn'll collars, tubing, testin tools and safety joints.

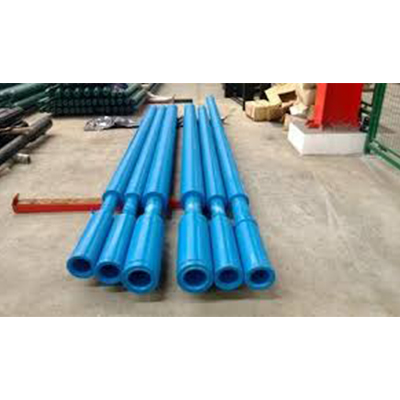

The jar impact Amplifier is a vital accessory tool designed to be run with the hydraulic fishing jar. Acting as a shodc absorber to the rebounding string, the jar impact amplifier will protect tools and string from damage.

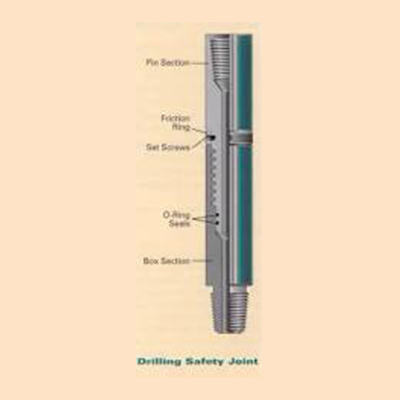

The Safety Joint provide safe and easy release and make-up whenever dis engagement becomes necessary. This dependable, field-tough tool is designed to transmit torque in either direction when placed in the drill, fishing, or washover string.

MILLING TOOLS.

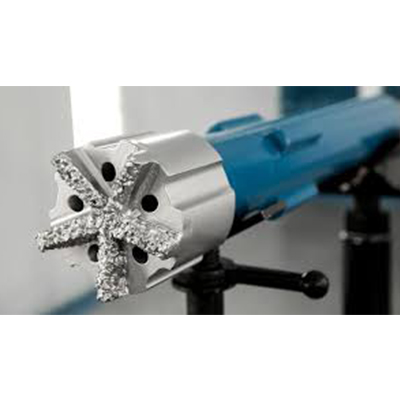

Rugged Junk Mills make milling jobs easy even when cutting the toughest fish such as alloy steel packers, squeeze tools, perforating guns, drill pipes, tool joints, reamers, reamer blades and rock bits.

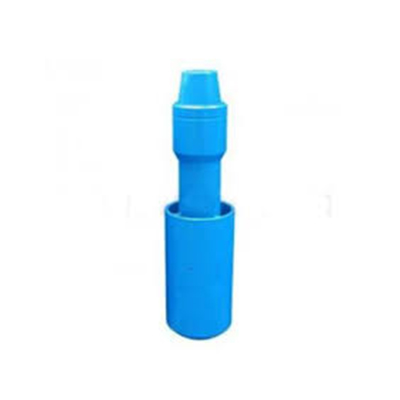

The Boot Basket is an accessory tool used in milling or drilling operations. It is designed to prevent cuttings that are too heavy to be circulated from settling to the bottom of the hole.

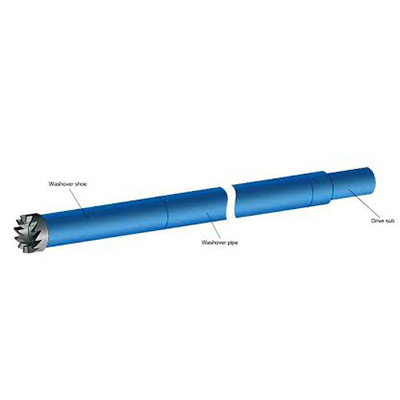

• Washover pipe
• Lift plugs
• Drive Subs
• Rotary Shoes

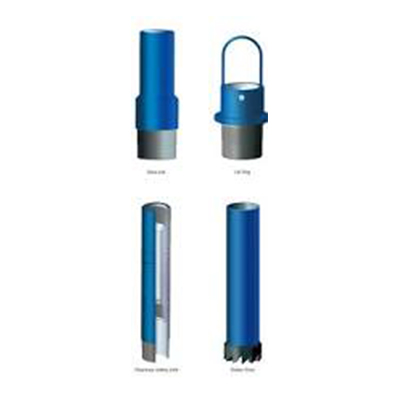

Washover safety joint provide safe and easy release and make up whenever disengagement from the washover string becomes necessary

Lift Plugs are designed to provide an economical method of handling washover strings. They are available in all thread types and sizes, have sufficient shoulder diameter to support handling the washover string and can be ordered with or without lifting bails.

REMEDIAL AND REPAIR

The damaged portion of casing must be cut and removed from the hole. It is important to properiy cut and dress the top of the down-hole casing for effective engagement and pack-off. Preparation.

The Casing Roller is a repair tool designed to restore buckled, collapsed and dented casing to its original diameter.

The Casing Scrapper is designed to remove scale, mud cake, cement sheath, embedded bullets and other foreign material from the inside of the casing wall.

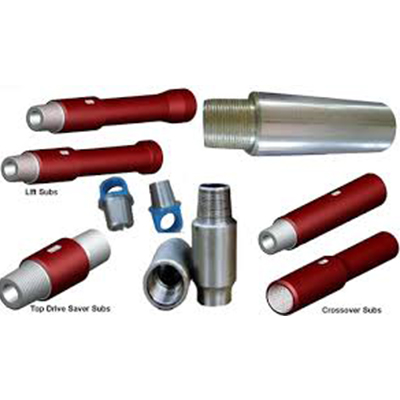

Cross over sub provides a connection between joints of difierent size or type of drilling, washover or tubing strings. Subs can be ordered pin-to pin, box-to-box, box-to-pin and are avaialable in lengths up to 96 inches.

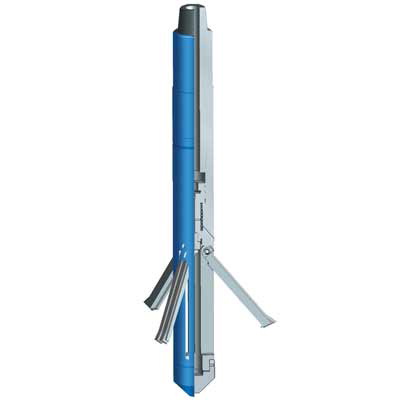

Internal cutters are simple, efficient tools for cutting tubing, casing or drill pipe.They are available in sizes for cutting 1 1/2” tubing up to 20 3/4” casing
