TUBULARS-OCTG

TUBULARS -OCTG

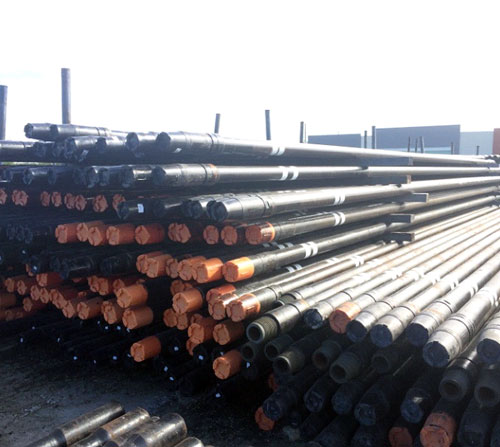

Drill Pipes

We provide a full range of high-quality welded drill-pipe in conformance with industry specifications (such as API SDP, 7.1 & 7.2., NS-l, DS-l (AND CRITICAL), IRP 1.8, ISO, etc.) and other fit for purpose specifications covering the most challenging drilling environments:

  • H2S environment
  • Extended Reach Wells (ERD) or Deep Water Drilling And many others
  • All drill pipes are end connections are machined to API and Non API [ VAM , GRAND PRIDECO , TPS , Etc
  • Tool Joint hard bands are ARNCO , TC or Equivalent

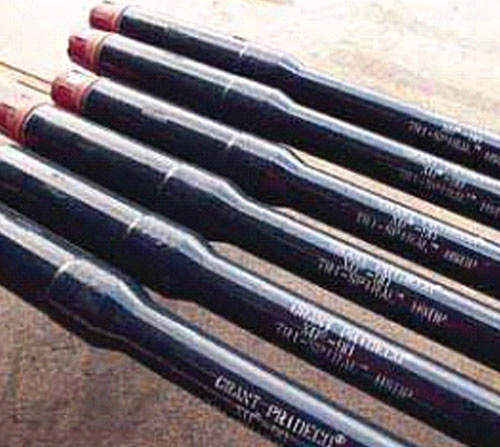

HWDP

Heavy Weight Drill Pipe

The equipment conforms to API Spec 7-1 , and API Spec 7- 2 supplemented by the requirements of NS-1 specification when needed.

  • Standard
  • Pipe body OD from 2-7/8" to 6-5/8"
  • welded and integral constructions
  • Central upset with two bands each of 3" of hard banding material to Protect casing and prevent wear

Drill Collars.

We provide a full range of slick and spiral drill collars manufactured in AISI 4145H - modified steel, Sour Service and non-magnetic alloys, Drill collars are available with the following features:

  • ODs from 9 ½” to 2 7/8"

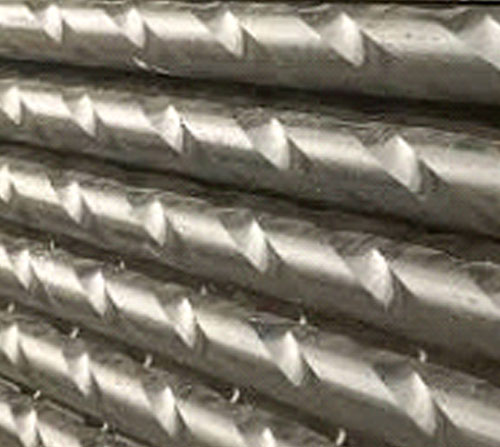

  • Slick Or spiral
  • Mechanical properties guaranteed to 1" below the steel's surface at ambient temperature.
  • Enhanced fatigue resistance (threads cold rolled, pin - relief groove and box bore back for API connections)
  • Phosphate-coated threads to prevent galling
  • Slip Elevator recess
  • API stress - relief and bore back

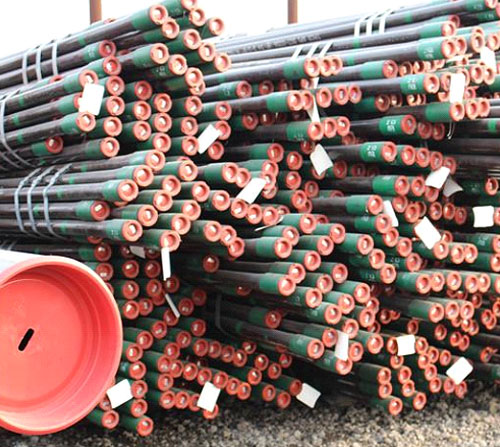

Tubings and Casings

We provide a full range of slick and spiral drill collars manufactured in AISI 4145H - modified steel, Sour Service and non-magnetic alloys, Drill collars are available with the following features:

  • We provide API Tubing size range 1.050" to 4 are the standard API threaded and coupled connections for oil production.
  • We provide API Casing size range 4 to 20" are the standard API threaded and coupled connections for oil production.
We provide below as well
  • Tubings with premium Connections
  • Casings with premium Connections
  • Macaroni Tubings
  • Multiseal flush joint Tubing
  • Pup joints
